Loop fitting H\(_2\)O and Silicate areas from unexposed MIs
This notebook shows how to quantify the relative area of the silicate peak and H\(_2\)O peak from acquisitions of olivine-hosted melt inclusions still at depth in the crystal. Specifically, the code unmixes the olivine and melt inclusions spectra to obtain the glass spectra
In this example, we fit each file individually
Install DiadFit if you havent already- uncomment this!
[1]:
#!pip install --upgrade DiadFit
Import necessary python things
[2]:
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import DiadFit as pf
pf.__version__
[2]:
'0.0.91'
[3]:
# This is where you tell the code where your spectra are. E.g. DayFolder is the overal folder, if you have subfolders for Spectra and MetaData
import os
DayFolder=os.getcwd()
meta_path=DayFolder + '\MetaData'
spectra_path=DayFolder + '\Spectra'
file_ext='.txt'
filetype='Witec_ASCII'
[4]:
# Get the files which are the melt inclusion/H2O acquisitoin first. You need a unique string (here H2O) which is in all files
MI_Files=pf.get_files(path=spectra_path,
file_ext=file_ext, ID_str='H2O',
exclude_str=['depth', 'line', 'scan'], sort=False)
MI_Files
[4]:
['02 CC14_MI2_H2O_96mw.txt',
'05 CC13_MI4_H2O.txt',
'09 CC9_MI3_H2O.txt',
'12 CC9_MI1_H2O_20X.txt',
'15 CC9_MI1_H2O_50X.txt',
'18 CC5_MI1_H2O_10mw.txt',
'21 CC7_MI3_H2O.txt',
'24 CC4_MI1_H2O.txt',
'29 MS13_2_MI1_H2O.txt']
[5]:
# These are the files for the acquisition in the neighbouring host mineral - in this case, the unique file string is 'Ol'
Host_Files=pf.get_files(path=spectra_path,
file_ext=file_ext, ID_str='Ol',
exclude_str=['depth', 'line', 'scan'], sort=False)
Host_Files
[5]:
['03 CC14_MI2_Ol_96mw.txt',
'06 CC13_MI4_Ol.txt',
'10 CC9_MI3_Ol.txt',
'16 CC9_MI1_Ol_50X.txt',
'19 CC5_MI1_Ol.txt',
'22 CC7_MI3_Ol.txt',
'25 CC4_MI1_Ol.txt',
'30 MS13_2_MI1_Ol.txt']
In future, we will add a way to remove Cosmic rays here
Look at what is required to split up, and where xstal vs MI name are
[6]:
print(Host_Files[0].split('_'))
['03 CC14', 'MI2', 'Ol', '96mw.txt']
[7]:
# Here you define what characters separate MI and crystal names
pos_crystal=0
pos_MI=1
char_crystal='_'
char_MI='_'
Host_Files_extract=pf.extract_xstal_MI_name(files=Host_Files, prefix=True, str_prefix=' ',
char_xstal=char_crystal, pos_xstal=pos_crystal, char_MI=char_MI, pos_MI=pos_MI, file_ext=file_ext)
Host_Files_extract.head()
good job, no duplicate file names
[7]:
| filename | crystal_name | MI_name | |
|---|---|---|---|
| 0 | 03 CC14_MI2_Ol_96mw.txt | CC14 | MI2 |
| 1 | 06 CC13_MI4_Ol.txt | CC13 | MI4 |
| 2 | 10 CC9_MI3_Ol.txt | CC9 | MI3 |
| 3 | 16 CC9_MI1_Ol_50X.txt | CC9 | MI1 |
| 4 | 19 CC5_MI1_Ol.txt | CC5 | MI1 |
[8]:
print(MI_Files[0].split('_'))
['02 CC14', 'MI2', 'H2O', '96mw.txt']
[9]:
MI_Files_extract=pf.extract_xstal_MI_name(files=MI_Files,prefix=True, str_prefix=' ',
char_xstal=char_crystal, pos_xstal=pos_crystal, char_MI=char_MI, pos_MI=pos_MI)
MI_Files_extract.head()
good job, no duplicate file names
[9]:
| filename | crystal_name | MI_name | |
|---|---|---|---|
| 0 | 02 CC14_MI2_H2O_96mw.txt | CC14 | MI2 |
| 1 | 05 CC13_MI4_H2O.txt | CC13 | MI4 |
| 2 | 09 CC9_MI3_H2O.txt | CC9 | MI3 |
| 3 | 12 CC9_MI1_H2O_20X.txt | CC9 | MI1 |
| 4 | 15 CC9_MI1_H2O_50X.txt | CC9 | MI1 |
[10]:
# This aligns the H2O and silicate file based on the same value for the column xstal name and MI name
merge=MI_Files_extract.merge(Host_Files_extract, on=['crystal_name', 'MI_name' ], how='inner')
merge.head()
[10]:
| filename_x | crystal_name | MI_name | filename_y | |
|---|---|---|---|---|
| 0 | 02 CC14_MI2_H2O_96mw.txt | CC14 | MI2 | 03 CC14_MI2_Ol_96mw.txt |
| 1 | 05 CC13_MI4_H2O.txt | CC13 | MI4 | 06 CC13_MI4_Ol.txt |
| 2 | 09 CC9_MI3_H2O.txt | CC9 | MI3 | 10 CC9_MI3_Ol.txt |
| 3 | 12 CC9_MI1_H2O_20X.txt | CC9 | MI1 | 16 CC9_MI1_Ol_50X.txt |
| 4 | 15 CC9_MI1_H2O_50X.txt | CC9 | MI1 | 16 CC9_MI1_Ol_50X.txt |
### Select file
Come back to here and change the i value
[11]:
print('max i value='+str(len(merge)-1))
max i value=8
[12]:
# Just choose 1 file to have a look
i=0
filename_MI=merge['filename_x'].iloc[i]
filename_Host=merge['filename_y'].iloc[i]
print(merge['filename_y'].iloc[i])
03 CC14_MI2_Ol_96mw.txt
[13]:
# This pulls out the host file and the MI file
spectra_Host=pf.get_data(path=spectra_path, filename=filename_Host,
Diad_files=None, filetype=filetype)
spectra_MI=pf.get_data(path=spectra_path, filename=filename_MI,
Diad_files=None, filetype=filetype)

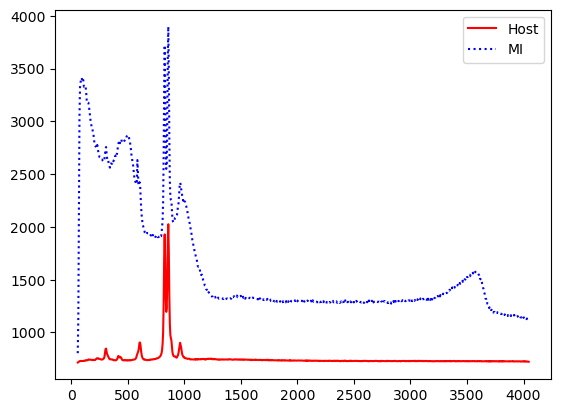

First plot spectra
[14]:
plt.plot(spectra_Host[:, 0], spectra_Host[:,1], '-r', label='Host')
plt.plot(spectra_MI[:, 0], spectra_MI[:,1], ':b', label='MI')
plt.legend()
[14]:
<matplotlib.legend.Legend at 0x24d034d3fd0>

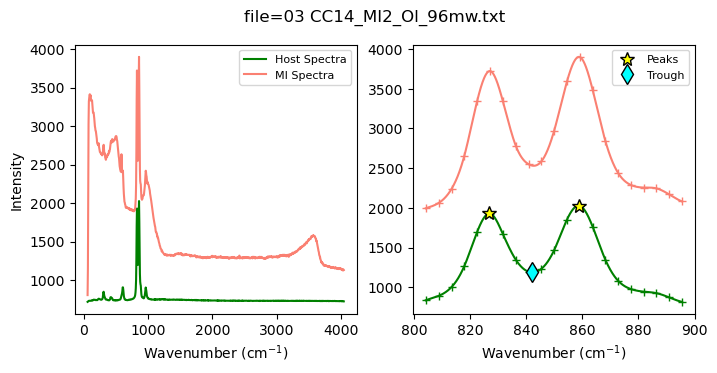

Now, lets smooth and trim the spectra, and find the peaks
[15]:
x_new, y_cub_MI, y_cub_Host, peak_pos_Host, peak_height_Host, trough_x, trough_y, fig=pf.smooth_and_trim_around_host(
x_range=[800,900], x_max=900, Host_spectra=spectra_Host,
MI_spectra=spectra_MI, filename=filename_Host)
fig.savefig('smooth_Spline.png', dpi=300, bbox_inches='tight')

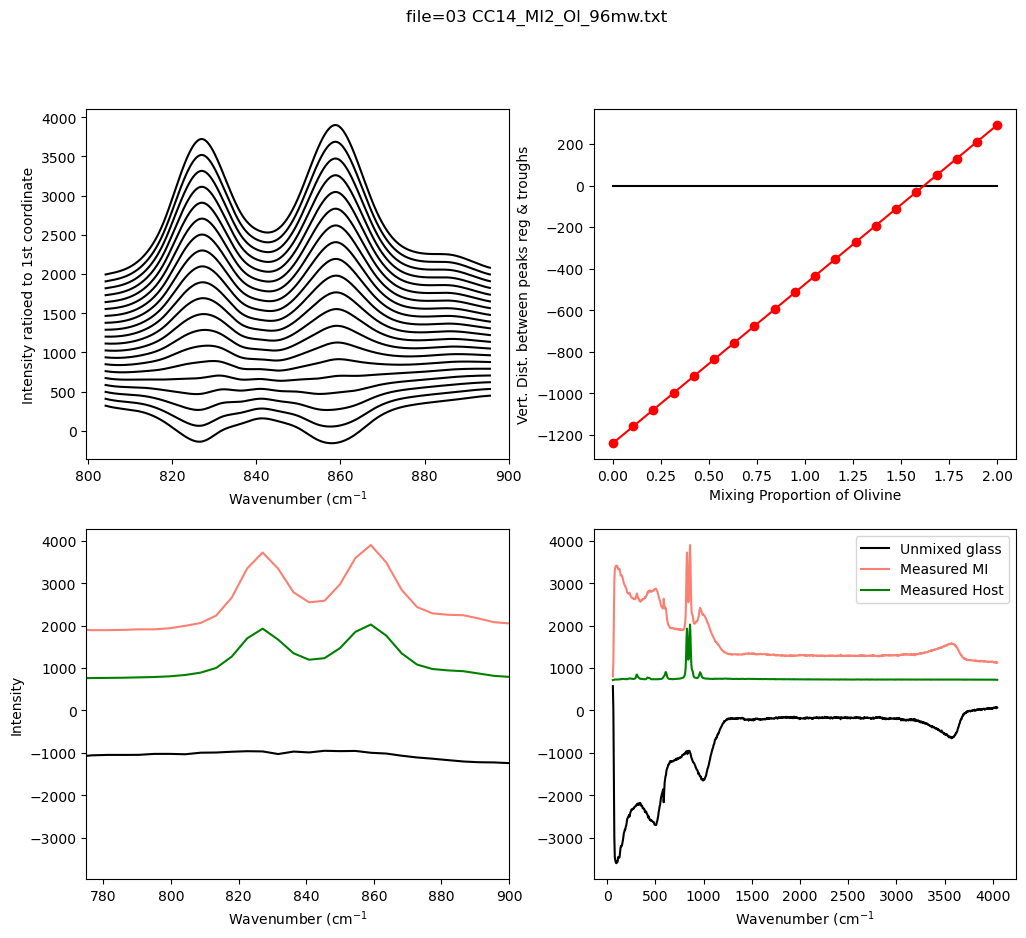

Now lets look at different mixing proportions
[16]:
MI_Mix_Best, ideal_mix, Dist, MI_Mix, X=pf.make_evaluate_mixed_spectra(
path=spectra_path, filename=filename_Host,
smoothed_host_y=y_cub_Host, smoothed_MI_y=y_cub_MI,
Host_spectra=spectra_Host, MI_spectra=spectra_MI, x_new=x_new,
peak_pos_Host= peak_pos_Host,
trough_x=trough_x, trough_y=trough_y, N_steps=20, av_width=2,
X_min=0, X_max=2)

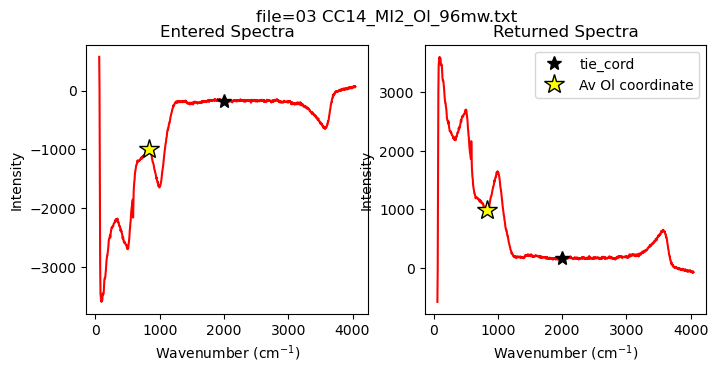

check if spectra needs inverting
Sometimes the best fit spectra will end up upsideown, this inverts it if this happens
[17]:
Spectra2=pf.check_if_spectra_negative(Spectra=MI_Mix_Best,
path=spectra_path, filename=filename_Host,
peak_pos_Host=peak_pos_Host, tie_x_cord=2000, override=False, flip=True)

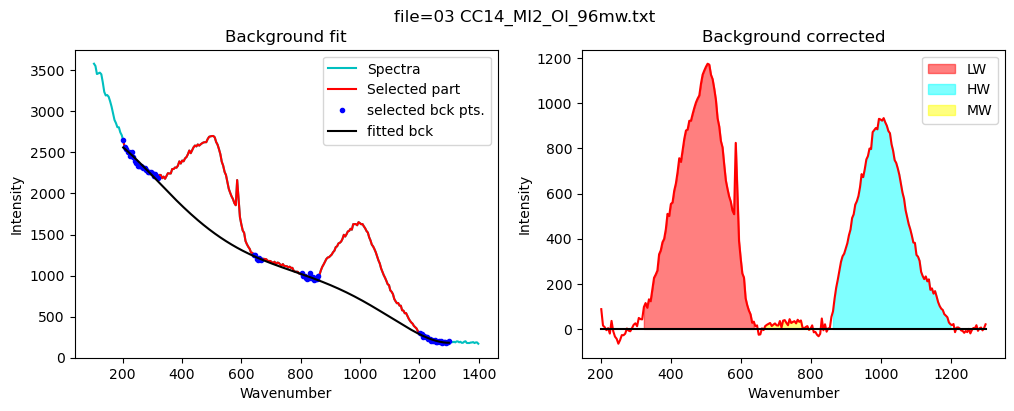

Now lets quantify the area under the silicate region
Set up the background postiions, can overwrite default
[18]:
config_silicate=pf.sil_bck_pos_Schiavi_basalt(
lower_range_sil=(200, 320),
mid_range1_sil=(640, 670), mid_range2_sil=(800, 860),
upper_range_sil=(1200, 1300),
N_poly_sil=5)
[19]:
print(config_silicate)
df_sil=pf.fit_area_for_silicate_region(Spectra=Spectra2,
path=spectra_path, filename=filename_Host, config1=config_silicate,
plot_figure=True,
fit_sil='poly')
df_sil
sil_bck_pos_Schiavi_basalt(lower_range_sil=(200, 320), mid_range1_sil=(640, 670), mid_range2_sil=(800, 860), upper_range_sil=(1200, 1300), LW=(400, 600), HW=(800, 1200), N_poly_sil=5, sigma_sil=5)
[19]:
| Silicate_LHS_Back1 | Silicate_LHS_Back2 | Silicate_RHS_Back1 | Silicate_RHS_Back2 | Silicate_N_Poly | Silicate_Trapezoid_Area | Silicate_Simpson_Area | LW_Silicate_Trapezoid_Area | LW_Silicate_Simpson_Area | HW_Silicate_Trapezoid_Area | HW_Silicate_Simpson_Area | MW_Silicate_Trapezoid_Area | MW_Silicate_Simpson_Area | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 200 | 320 | 1200 | 1300 | 5 | 379864.496263 | 379745.013178 | 198303.832398 | 198693.030414 | 198303.832398 | 198693.030414 | 2856.492903 | 2889.766264 |

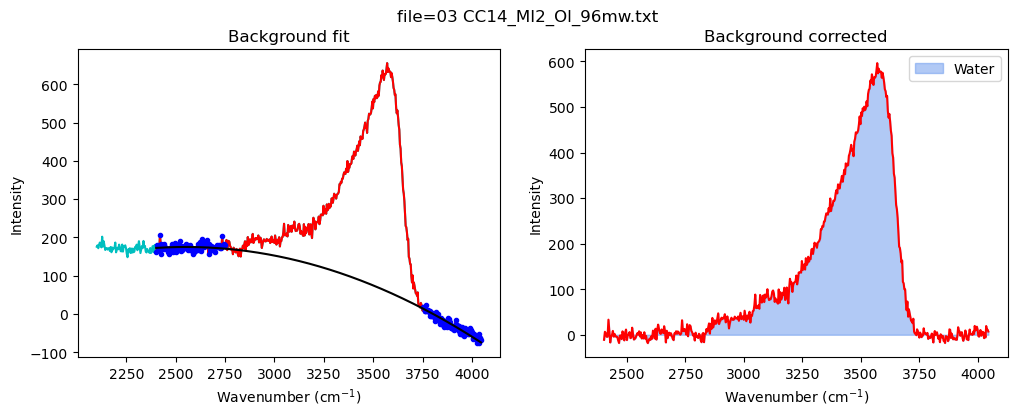

Now quantify the area under the water region
[20]:
config_MI=pf.water_bck_pos(lower_bck_water=(2400, 2750),
N_poly_water=2)
print(config_MI)
df_H2O=pf.fit_area_for_water_region(
path=spectra_path, filename=filename_Host,
Spectra=Spectra2, config1=config_MI, plot_figure=True)
water_bck_pos(fit_water='poly', N_poly_water=2, lower_bck_water=(2400, 2750), upper_bck_water=(3750, 4100))
[21]:
combo_out=pf.stitch_dataframes_together(path=DayFolder, df_sil=df_sil, df_water=df_H2O,
Host_file=filename_Host, MI_file=filename_MI, save_csv=True)
combo_out
[21]:
| Host filename | MI filename | HW:LW_Trapezoid | HW:LW_Simpson | Water_Trapezoid_Area | Water_Simpson_Area | Silicate_Trapezoid_Area | Silicate_Simpson_Area | Silicate_LHS_Back1 | Silicate_LHS_Back2 | ... | HW_Silicate_Trapezoid_Area | HW_Silicate_Simpson_Area | MW_Silicate_Trapezoid_Area | MW_Silicate_Simpson_Area | Water Filename | Water_LHS_Back1 | Water_LHS_Back2 | Water_RHS_Back1 | Water_RHS_Back2 | Water_N_Poly | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 03 CC14_MI2_Ol_96mw.txt | 02 CC14_MI2_H2O_96mw.txt | 1.065692 | 1.062774 | 211330.717146 | 211165.80878 | 379864.496263 | 379745.013178 | 200 | 320 | ... | 198303.832398 | 198693.030414 | 2856.492903 | 2889.766264 | 03 CC14_MI2_Ol_96mw.txt | 2400 | 2750 | 3750 | 4100 | 2 |
1 rows × 25 columns
Click this to go back to the point where you change i
Select file
[22]:
csv_files2=pf.get_files(path=os.getcwd(), ID_str='Ol-H2O',
sort=True, file_ext='csv')
csv_files2
[22]:
['Ol-H2O combo, file0.csv',
'Ol-H2O combo, file1.csv',
'Ol-H2O combo, file2.csv',
'Ol-H2O combo, file3.csv',
'Ol-H2O combo, file4.csv',
'Ol-H2O combo, file5.csv',
'Ol-H2O combo, file6.csv',
'Ol-H2O combo, file7.csv',
'Ol-H2O combo, file8.csv']
[23]:
df = pd.concat(
map(pd.read_csv, csv_files2), ignore_index=True)
df
[23]:
| Unnamed: 0 | Olivine filename | MI filename | H2O_vs_Silicate_Area_Trapezoid | H2O_vs_Silicate_Area_Simpson | Water_Trapezoid_Area | Water_Simpson_Area | Silicate_Trapezoid_Area | Silicate_Simpson_Area | Silicate_LHS_Back1 | ... | Host filename | HW:LW_Trapezoid | HW:LW_Simpson | LW_Silicate_Trapezoid_Area | LW_Silicate_Simpson_Area | HW_Silicate_Trapezoid_Area | HW_Silicate_Simpson_Area | MW_Silicate_Trapezoid_Area | MW_Silicate_Simpson_Area | Water Filename | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 | 03 CC14_MI2_Ol_96mw.txt | 02 CC14_MI2_H2O_96mw.txt | 0.385033 | 0.384900 | 2.110401e+05 | 2.109270e+05 | 5.481086e+05 | 5.480040e+05 | 200 | ... | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN |
| 1 | 0 | NaN | 05 CC13_MI4_H2O.txt | NaN | NaN | 1.599166e+05 | 1.599021e+05 | 3.528897e+05 | 3.529956e+05 | 190 | ... | 06 CC13_MI4_Ol.txt | 0.734731 | 0.733601 | 217653.306279 | 217968.828298 | 217653.306279 | 217968.828298 | -198.998756 | -132.670940 | 06 CC13_MI4_Ol.txt |
| 2 | 0 | NaN | 09 CC9_MI3_H2O.txt | NaN | NaN | 3.014613e+05 | 3.015301e+05 | 5.760813e+05 | 5.755996e+05 | 190 | ... | 10 CC9_MI3_Ol.txt | 0.939945 | 0.940443 | 320722.192476 | 320625.755483 | 320722.192476 | 320625.755483 | -560.096605 | -774.983948 | 10 CC9_MI3_Ol.txt |
| 3 | 0 | 16 CC9_MI1_Ol_50X.txt | 12 CC9_MI1_H2O_20X.txt | 0.691097 | 0.691153 | 2.659896e+05 | 2.659791e+05 | 3.848804e+05 | 3.848337e+05 | 200 | ... | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN |
| 4 | 0 | 16 CC9_MI1_Ol_50X.txt | 15 CC9_MI1_H2O_50X.txt | 0.415320 | 0.415619 | 2.006706e+05 | 2.007565e+05 | 4.831707e+05 | 4.830299e+05 | 200 | ... | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN |
| 5 | 0 | 19 CC5_MI1_Ol.txt | 18 CC5_MI1_H2O_10mw.txt | 0.472119 | 0.472046 | 4.406210e+05 | 4.402918e+05 | 9.332830e+05 | 9.327305e+05 | 200 | ... | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN |
| 6 | 0 | 22 CC7_MI3_Ol.txt | 21 CC7_MI3_H2O.txt | 0.358982 | 0.358259 | 3.399705e+05 | 3.393829e+05 | 9.470408e+05 | 9.473115e+05 | 200 | ... | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN |
| 7 | 0 | 25 CC4_MI1_Ol.txt | 24 CC4_MI1_H2O.txt | 0.450871 | 0.451595 | 3.800482e+06 | 3.803850e+06 | 8.429201e+06 | 8.423140e+06 | 200 | ... | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN |
| 8 | 0 | 30 MS13_2_MI1_Ol.txt | 29 MS13_2_MI1_H2O.txt | 0.096652 | 0.096509 | 8.935362e+04 | 8.907472e+04 | 9.244899e+05 | 9.229682e+05 | 200 | ... | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN |
9 rows × 29 columns
